Drop-In Speed Controllers for Pallet Flow

Controlled, efficient speed... Guaranteed!

SOLUTIONS

FOR THE TOUGHEST APPLICATIONS

"*" indicates required fields

Name*
Please use business email
This field is for validation purposes and should be left unchanged.

Fast On-Site Installation

Speed controllers provide a necessary control mechanism to maintain a safe, measured pallet flow or speed as they advance down the lane. Acting as a sort of braking device, the speed controller slows the pallet and prevents it from gaining too much speed in the gravity-inspired process. Slowing the pallet provides better lane tracking which helps ensure that the pallet arrives squared with the lane opening at the pick face, thus facilitating a faster, easier forklift extraction.

Mallard drop-in speed controllers can be installed on-site for all wheeled tracks and narrow roller track applications. Our most popular controller type, drop-in assembly is quick and easy, requiring minimal hardware. Mallard speed controllers are available in light, medium and heavy-duty options to best meet your pallet flow inventory needs.

Advantages:

  • Drop-in design for quick installation and replacement
  • Pallet speed controlled at safe level
  • Pallets track centered down the lane
  • Ideal for freezer applications
  • Doubles the braking surface vs. direct mount for improved efficiency

Specifications:

  • Use with Magnum wheel, steel skate wheel & narrow roller pallet flow systems
  • Available in light, medium and heavy-duty options
  • Weight variance of 1500#

Drop-In Speed Controller Installation Video

With simple to access tools and few minutes of time, your pallet flow system can be enhanced with safety and efficiency boosting drop-in speed controllers.

What You'll Need:

  • 1- 5” bolt
  • 1- acorn nut

Tools: Wrench or Socket Wrench

Simple Process:

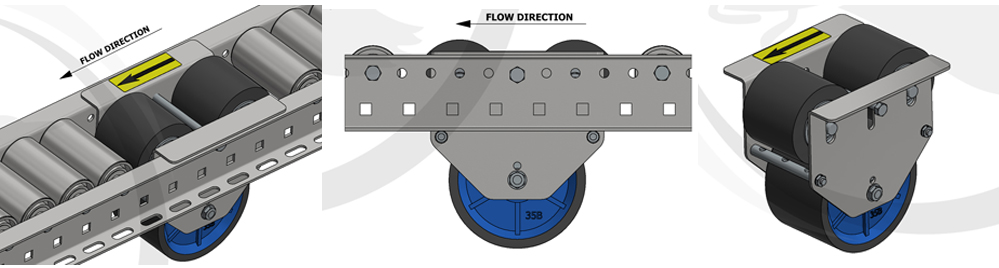

Place the speed controller in the opening between the wheels. Be sure the arrow is aligned with the direction of flow. Insert the bolt and snuggly tighten the acorn nut being careful to not overtighten. Repeat process for all speed controllers.
